1. Particle Aggregation Causing Measurement Errors

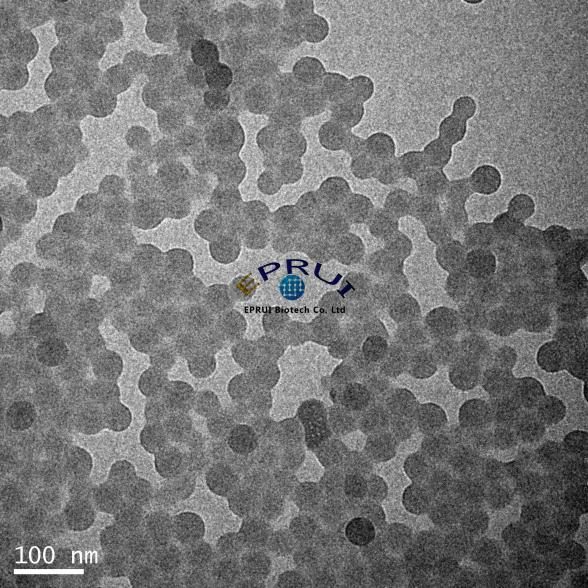

PSL particles tend to aggregate in solution due to van der Waals forces or electrostatic interactions, leading to overestimated particle sizes and compromised calibration accuracy.
Solutions:
Pre-use dispersion: Ultrasonicate for 10-15 min (power ≤50W) to break aggregates.
Surfactant addition: Incorporate 0.01% Triton X-100 in dilution buffers to reduce surface tension.
Concentration control: Dilute to <1% solid content to minimize particle collisions.
2. Insufficient Detection Sensitivity
Weak instrument response to small PSL particles (<0.1μm) may cause calibration failure or contaminant miss-detection.
Solutions:
Instrument optimization:
- For light scattering: Increase laser power (e.g., 5mW → 10mW); adjust detection angle to 15-30°.
- For SEM/AFM: Use low acceleration voltage (≤5kV) to enhance nanoscale resolution.
Multi-size validation: Mix 0.1μm and 0.3μm PSL for stepwise detection limit verification.
3. Particle Size Range Mismatch
PSL particle sizes currently using can not meet special needs (e.g., Micro-via Inspection in advanced packaging).
Solutions:
Custom production: Source specific particle size of PSL (e.g., ±5% tolerance) from professional PSL microspheres suppliers: EPRUI Biotech,who can provide CV<3% size standard PSL particles with various particle size choices.
Tiered calibration: Use 1μm PSL for baseline calibration, then smaller sizes for high-resolution validation.
4. Low Fluorescent Labeling Efficiency
Uneven adsorption of fluorescent PSL at defect sites results in weak signals or high background noise.
Solutions:
Surface modification: Use positively charged PSL (e.g., amino-modified) for enhanced adhesion to negatively charged defects.
Staining optimization:
- Incubate at 37°C for 20 min to improve diffusion.
- Rinse 3× with DI water to reduce nonspecific binding.
5. Residue from cleaning process
High residual of PSL particles affect the accuracy of validation process
Solutions:
Process optimization:
- Megasonic cleaning: Increase frequency from 800kHz to 1.2MHz for stronger cavitation.
- Brush scrubbing: Raise speed from 150rpm to 200rpm with DI water flow ≥10L/min.
Residue quantification: Use AFM to count residual particles (industry standard: ≤5 particles/cm²).
6. Equipment Compatibility Problems
Some tools (e.g., EUV lithography systems) exhibit signal distortion with PSL particles.
Solutions:
Alternative materials: Use size stanard silica microspheres (RI=1.46) or gold nanoparticles for supplemental calibration.
Algorithm compensation: Develop scattering models based on known PSL sizes to correct instrument responses.
7. Environmental Interference
Temperature/humidity fluctuations or airflow disturbances cause uneven PSL deposition.
Solutions:
Environmental control:
- Operate in ISO Class 4 cleanrooms (23±1°C, 40-50% RH).
- Turn off ventilation during deposition; allow 30-min settling.
Deposition method**: Replace drop-casting with spin-coating (1000-3000rpm) for improved uniformity.
8. Poor Data Reproducibility
High measurement variability hinders process stability assessment.
Solutions:
Build up Standardized protocols (SOP):
- Perform baseline tests with the same PSL batch pre-calibration.
- Weekly instrument maintenance (lens/sensor cleaning).
Statistical analysis: Apply mean ±3σ outlier rejection; calculate Cpk for process capability evaluation.
