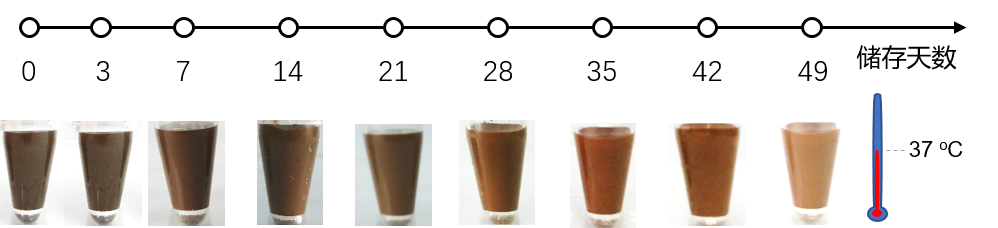

During experiments, when the color of magnetic beads changes from brownish to reddish-brown, many people may wonder: Can these magnetic beads still be used? In fact, discoloration of magnetic beads is a common phenomenon with underlying scientific principles. Understanding these principles allows for a more confident approach to handling the issue.
1. The Cause of Magnetic Bead Discoloration
Magnetic beads commonly used for nucleic acid extraction typically have a core-shell structure. The outer layer consists of silica (SiO₂), which acts as a protective film, not only providing protection but also functionalizing the surface of the beads. The inner magnetic core is composed of iron oxides, primarily a mixture of Fe3O4 and gamma−Fe2O3, which is the key to the superparamagnetic properties of the beads.
During storage, the magnetic core comes into contact with air and moisture, leading to oxidation reactions: Fe3O4(black) reacts with oxygen to form gamma Fe2O3 (reddish-brown). Simply put, Fe²⁺in the magnetic core is oxidized to Fe³⁺, which is the direct cause of the color change in the beads.
The color of the beads is also influenced by the magnetic core material, surface coating material, and particle size, with the magnetic core material having the most significant impact. For example, black Fe3O4 oxidizes to brownish-yellow Fe2O3 . For nucleic acid extraction, the surface of the beads is mostly modified with SiO2. However, this SiO2 layer is not entirely dense and has small gaps, allowing oxygen molecules to penetrate and gradually oxidize Fe3O4 to brownish-yellow Fe2O3.
2. The Impact of Discoloration on Magnetic Bead Performance
(1) Effects on Structure and Magnetic Responsiveness
Many worry that oxidation will significantly reduce the saturation magnetization of the beads. In reality, while there are differences, they are not substantial. The saturation magnetization of Fe3O4 is indeed higher than that of its oxidation product, gamma Fe2O3. After oxidation, the magnetic responsiveness of individual particles may weaken slightly, but for routine nucleic acid extraction operations, the superparamagnetism of gamma Fe2O3 is sufficient to adsorb the beads to the tube wall. Experimental data show that the magnetic response time changes minimally with storage time, indicating that oxidation has a minor impact on magnetic responsiveness.
Another concern is whether the silica shell might crack, leading to iron ion leakage. The answer is Yes.The iron ion leakage is possible. While the silica shell provides protection and functionalization, it is not entirely free of gaps, and the thickness of the coating varies among different beads. During long-term storage, factors such as changes in buffer pH, temperature fluctuations, and mechanical stress may cause nano scale cracks and pores on the surface. This has two consequences: first, it provides channels for dissolved oxygen, accelerating the oxidation of the inner magnetic core; second, it may lead to the leakage of Fe²+/Fe³⁺ions into the surrounding buffer.
(2) Effects on Nucleic Acid Extraction Performance
In the early stages of mild oxidation, the impact on bead performance is limited. However, prolonged oxidation can reduce nucleic acid extraction efficiency. On one hand, leaked Fe²⁺and Fe³⁺are high-valent cations that compete with target cations (e.g., Na⁺) for binding sites on the bead surface groups and the DNA phosphate backbone, thereby reducing nucleic acid adsorption efficiency. Washing the beads before use can partially mitigate this issue. On the other hand, over time, cracks in the silica shell may worsen or even peel off, reducing the number of functional groups available for nucleic acid binding. Nevertheless, within the beads’ shelf life, changes in the surface carboxyl group density remain controllable.
The good news is that even after discoloration, the “working capability” of the beads remains reliable. Data show that the saturation magnetization remains at 60 emu/g before and after discoloration, retaining superparamagnetism and enabling rapid magnetic recovery. As nucleic acid extraction beads, their efficiency remains high, with nucleic acid recovery rates exceeding 90%. Even for beads that discolor after 14 days in “high-temperature, oxygen-rich environment,” their performance remains unaffected.
3. Recommendations for Storing Magnetic Beads
The change in color from brownish to reddish-brown is a clear indicator of magnetic core oxidation, and its impact on performance is gradual. In the early stages of mild discoloration, the effects are minimal, but as aging intensifies (with deeper discoloration), the risk of performance degradation increases significantly.
However, there is no need for excessive concern. After oxidation and discoloration, the beads form a dense oxidation layer, after which no further changes occur. Therefore, this oxidation is safe and does not affect their working capability.
To maintain the beads in good condition, strictly follow the manufacturer’s storage instructions, typically requiring refrigeration and airtight storage, while paying attention to the expiration date. If significant discoloration is observed, it is advisable to verify performance with a new batch of beads before processing precious samples.
