The Invisible Guardian of Precision: An In-Depth Analysis and Application Outlook of Time-Resolved Fluorescent Microsphere Test Strip Technology

In the field of point-of-care testing (POCT), test strip technology has become a vital tool for home self-testing and primary healthcare due to its speed, convenience, and low cost. When we think of test strips, the first image that comes to mind is often the distinct visible “red line” or “blue line”—the classic signature of colloidal gold technology. However, as detection demands evolve towards higher sensitivity and more precise quantification, a powerful “invisible” contender—the time-resolved fluorescent microsphere test strip—is quietly emerging. It does not reveal itself to the naked eye, but under the “watchful eye” of specialized instruments, it can uncover microscopic world information far beyond the capabilities of traditional methods.

Visible vs. "Invisible": Working Principles and Direct Comparison of the Two Technologies

Colloidal Gold/Dyed Microsphere Test Strips: The “King of Qualitative” Visible to the Naked Eye

The core principle of colloidal gold and dyed microsphere test strips is the reflection or absorption of visible light.

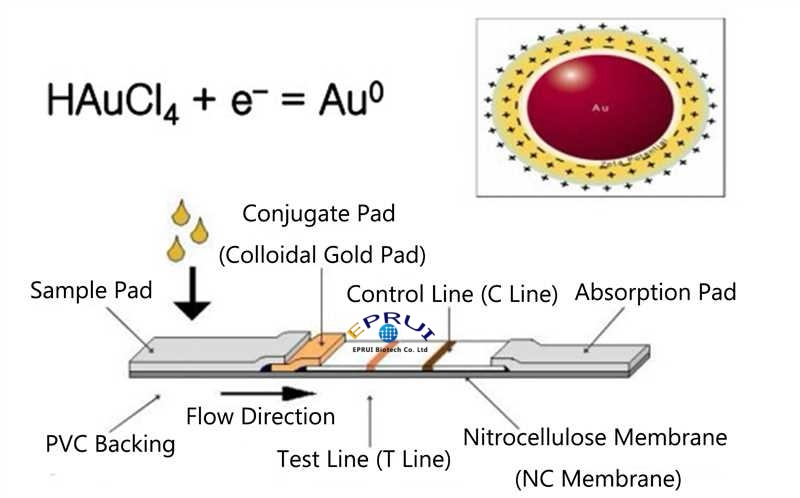

Colloidal Gold: Consists of nanoscale gold particles produced by reducing chloroauric acid, which appear a vibrant wine-red at specific sizes. It electrostatically adsorbs labeled antibodies (or antigens). When immune reactions occur and accumulate at the test line (T line) and control line (C line), the red gold particles aggregate, forming a visible colored line.
Dyed Microspheres: These are typically microspheres made of materials like latex, impregnated or coated with organic dyes (blue, red, etc.). Their color development principle is similar to colloidal gold, relying on the accumulation of colored material for visual interpretation.

The greatest advantage of these two technologies is that they require no equipment, and the results are intuitive. They are perfectly suited for qualitative or semi-quantitative judgment (e.g., pregnancy, influenza, COVID-19 antigen tests), meeting the instant “what you see is what you get” demand.

Time-Resolved Fluorescent Microsphere Test Strips: A Quantitative Treasure Chest Requiring a “Key” to Open.

The core of time-resolved fluorescent microspheres is not to produce a visible color, but to emit a special fluorescent signal. These microspheres are doped with chelates of rare earth elements (e.g., Europium Eu³⁺, Terbium Tb³⁺) inside.

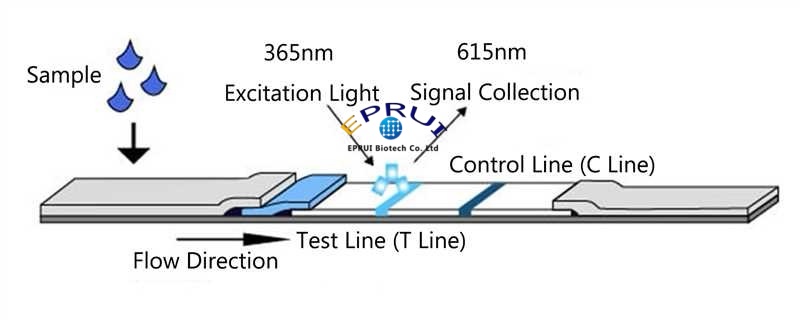

Their workflow is similar to colloidal gold test strips, also based on the lateral flow immunoassay principle. The key differences lie in:

Label: Uses time-resolved fluorescent microspheres instead of colloidal gold.
Detection Method: After the reaction is complete, the test strip itself shows no color or only a very faint background. It must be placed into a dedicated time-resolved fluorescence reader.
Signal Reading: The reader emits an excitation light of a specific wavelength (usually ultraviolet) onto the test and control zones. The rare earth ions in the microspheres are excited and emit fluorescence at a specific wavelength. The instrument precisely captures and measures the intensity of this fluorescence.

Direct Comparison Table:

Characteristic	Colloidal gold/dyed microspheres test strips	Time-resolved fluorescent microsphere test strips
Markers	Gold nanoparticles	Time-Resolved Fluorescent Microsphere
Color rendering properties	Visible to the naked eye, with red/blue lines	Invisible to the naked eye,special instruments are required to read
Detection principle	Colorimetry, based on light absorption/scattering	Fluorescence emission based on rare earth elements
Interpretation of the results	Qualitative/semi-quantitative (visual colorimetry)	Precise quantification (fluorescence intensity is proportional to concentration)
Sensitivity	Relatively low (μg/mL – ng/mL levels)	Very high (usually up to the pg/mL level, 1-3 orders of magnitude higher)
Linear range	Narrow, prone to “hook effect”	wide for accurate measurement of a wider range of concentrations
Anti-interference ability	It is susceptible to interference from the sample’s own color and background matrix	Extremely strong, using time-resolved technology to effectively eliminate background fluorescence
Cost	Test strips are low cost and require no equipment	The cost of test strips is high, and a special reader is required
Main applications:	Home self-test, rapid screening for infectious diseases, pregnancy test	Accurate measurement of disease markers, drug concentration monitoring, food safety, and environmental monitoring

Unraveling the Core Advantage: Why Are Time-Resolved Fluorescent Microspheres So Powerful?

The superior performance of time-resolved fluorescent microsphere test strips stems from the unique physicochemical properties of their core material—the time-resolved fluorescent microspheres. They are fundamentally different from ordinary fluorescent microspheres (e.g., those labeled with FITC, Cy5).

Characteristic	Time-resolved fluorescent microsphere test strips (rare earth doping)	Ordinary fluorescent microspheres (organic dyes/quantum dots)
Stokes Shift	Very large (>250 nm)	Smaller (tens of nanometers)
Fluorescence lifetime	Very long (down to microseconds to milliseconds)	Very short (nanoseconds)
Emission peak	Sharp, the peaks are wide	Wider and easier to overlap
Light stability	Extremely strong, not easy to light bleach	Relatively weak,prone to photobleaching

The Major Advantages Derived from These Properties:

Foundation for Ultra-High Sensitivity: Large Stokes Shift

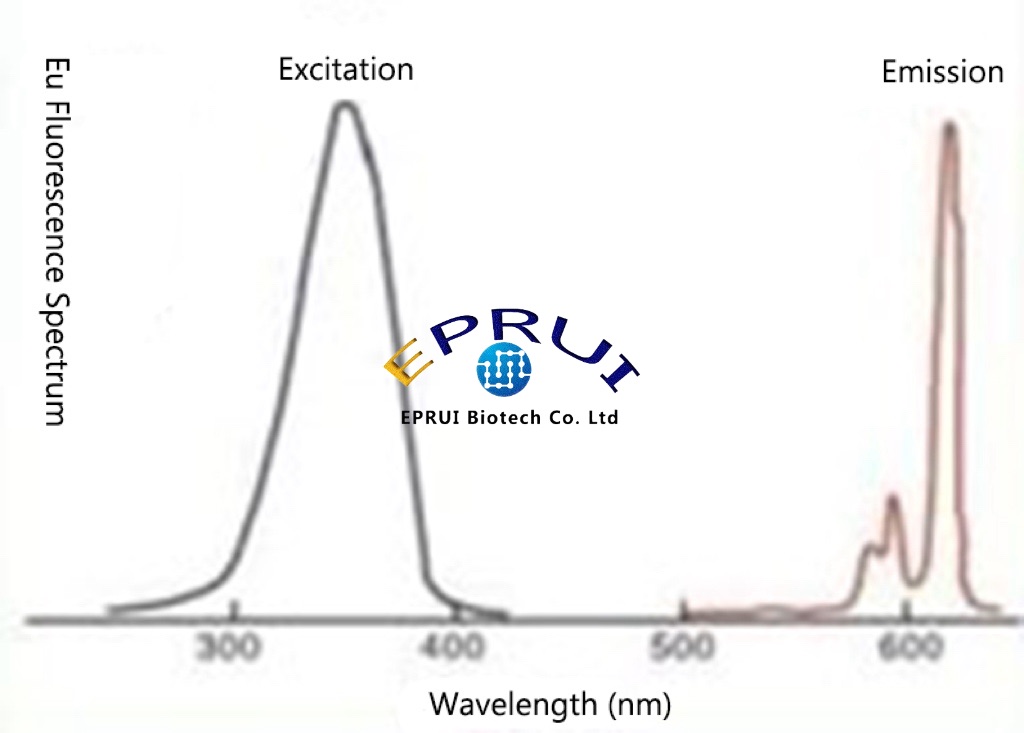

The Stokes shift is the difference between the excitation and emission wavelengths. Ordinary fluorescent dyes have a small shift, causing excitation and emission light to easily interfere with each other, resulting in a low signal-to-noise ratio.
Time-resolved fluorescent microspheres have an extremely large Stokes shift, allowing the excitation light (e.g., UV) and the detection signal (e.g., red fluorescence) to be clearly separated by the instrument, significantly reducing background noise and thus achieving extremely high detection sensitivity.

The “Secret Weapon” for Superior Interference Resistance: Time-Resolved Technique

The sample matrix (e.g., serum, urine, food homogenates) itself contains proteins, organic matter, etc., which produce short-lived, nanosecond-scale background fluorescence that can severely interfere with ordinary fluorescence detection.
Time-resolved fluorescence technology employs a clever “time-gating” strategy: After the excitation light pulse stops, the instrument waits for a short period (e.g., 50 microseconds) for the short-lived background fluorescence from the sample to completely decay. Then, it opens the detector to specifically capture the long-lived specific fluorescence signal from the rare-earth microspheres. This is like clearly hearing a long chime (specific signal) after a noisy party (background noise) suddenly goes quiet. This technique almost entirely eliminates background interference, which is the key to its high accuracy in complex samples.

Ensuring Precise Quantification and Stability

Sharp emission peaks prevent crosstalk between different detection channels, making them suitable for multiplex detection.
Excellent photostability ensures the repeatability and reliability of results, preventing signal decay due to prolonged light exposure.

Application Scenarios: Each Has Its Merits, Coexisting and Complementing

Although time-resolved fluorescence technology holds clear advantages, colloidal gold test strips still occupy a vast market due to their irreplaceable convenience.

Typical Applications of Colloidal Gold Test Strips:

Home Self-Testing: Pregnancy, ovulation tests.
Rapid Infectious Disease Screening: Antigen/antibody detection for influenza virus, SARS-CoV-2, HIV, malaria, etc.
Preliminary Food Safety Screening: Rapid qualitative testing for pesticide residues, veterinary drug residues.

The applications of Time-Resolved Fluorescent Microsphere Test Strips:

Precision Medicine and Disease Management:
Cardiovascular Diseases: Quantitative detection of high-sensitivity C-reactive protein, Troponin I/T for cardiovascular risk assessment and myocardial infarction diagnosis.
Tumor Markers: Early screening and efficacy monitoring for Alpha-fetoprotein, Carcinoembryonic Antigen, Prostate-Specific Antigen, etc.
Hormone Testing: Precise measurement of thyroid function indicators (TSH, T3, T4), sex hormones.
Therapeutic Drug Monitoring (TDM): Monitoring blood concentrations of drugs with a narrow therapeutic window (e.g., Digoxin, Carbamazepine) to guide personalized medication.
High-End Food Safety and Environmental Monitoring:
Trace-level quantitative analysis of mycotoxins (e.g., Aflatoxins), antibiotic residues, environmental pollutants (e.g., PAHs, heavy metals) to meet stringent regulatory limits.
Multiplex Detection:
Using different rare-earth elements to label different antibodies allows for the simultaneous detection of multiple targets on the same test strip, achieving “multiple tests per card,” greatly improving efficiency.

Summary and Outlook

Colloidal gold and time-resolved fluorescent microsphere test strips represent two different stages and directions in the development of POCT technology. Colloidal gold is the “universal” pioneer, solving the “yes or no” problem of rapid qualitative screening with its ultimate convenience and low cost. The time-resolved fluorescent microsphere, however, is the “professional” precision tool, overcoming the challenge of trace-level quantitative analysis in complex backgrounds with its exceptional sensitivity, accuracy, and quantitative capability.

In the future, these two technologies will not simply replace one another but will coexist complementarily, each serving its purpose. Colloidal gold will remain the mainstream for primary screening and home self-testing scenarios. In professional fields such as hospital clinical laboratories, disease control centers, and third-party testing labs where higher result requirements exist, time-resolved fluorescence technology is demonstrating significant potential and growth momentum.

With advancements in nanomaterial science, microelectronics, and artificial intelligence, time-resolved fluorescence readers are evolving towards miniaturization, intelligence, and lower cost. We have reason to believe that this precise guardian, once “hidden” in laboratories, will gradually step down from its pedestal and provide even stronger protection for human health and safety in a broader arena.
